HX450REL

Rear Loaders

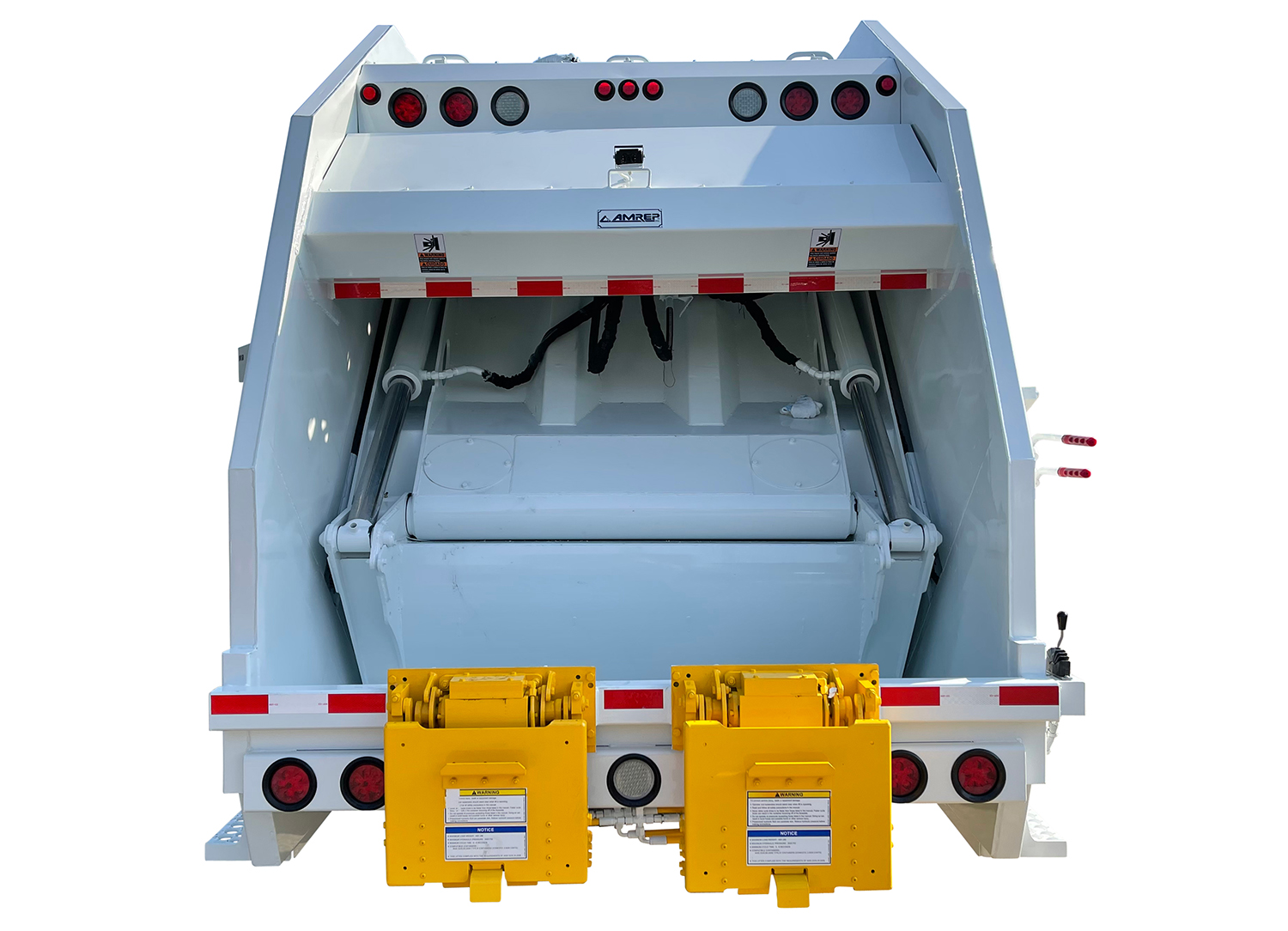

Amrep’s rear load refuse truck is the only rear load on the market with a body and chassis made entirely with Hardox® AR450 & AR500 steel. Amrep’s renowned durability and simplicity, paired with Hardox steel makes the strongest and most reliable rear load refuse truck on the market.

Specifications

  • Working RPM @ Idle

    • Dump Cycle: 16
    • Sweep Extend: 4
    • Sweep Retract: 2
    • Slide Extend: 3
    • Slide Retract: 7
    • Tailgate Open: 30
    • Tailgate Closed: 18
    • Compaction: 900 lb/yd3
    • Chromium Wear Plates and Shoes

    Hydraulics

    • Pump Single gear or vane with pack-on-the-go flow control system
    • Control Valves Primary; Parker VA35 with
    • Smart-Pak®
    • Oil Reservoir 17–20 yd3: 40 gallon
    • 25–32 yd3: 50 gallon
    • Filter Parker 40 CN, 100 mesh
    • Suction strainer

    Cylinders

    • Ejector Cylinder 6-1/4 in. bore x 5-3/4
    • Ejector Cylinder 6-1/4 in. bore x 5-3/4 in. rod x 88-3/4 in. stroke (20 yd, 3-stage)
    • 7-1/2 in. bore x 7 in. rod x 119-1/2 in. stroke (25 yd, 4-stage)
    • Slide Cylinder 4-1/2 in. bore x 3-1/2 in. rod x 32-1/2 in. stroke
    • Sweep Cylinders 4 in. bore x 3 in. rod
    • Tailgate Cylinder 2-7/8 in. bore x 2-1/2 in. rod x 32-1/2 in. stroke

    Standard Body Specifications

    • Body Floor 3/16 in. AR450 Hardox
    • Side Walls, Front Section 10-gaug0e AR450 Hardox
    • Side Walls, Rear Section 1/8 in. AR450 Hardox
    • Roof 10-gauge AR450 Hardox

    Tailgate Specifications

    • Tailgate Walls 3/16 in. AR450 Hardox
    • Hopper Floor Liner 2mm AR450 Hardox

Size Options
    • 20 yd3 model
    • 25 yd3 model
